Gimax to introduce new line of non-slip wet drawing units

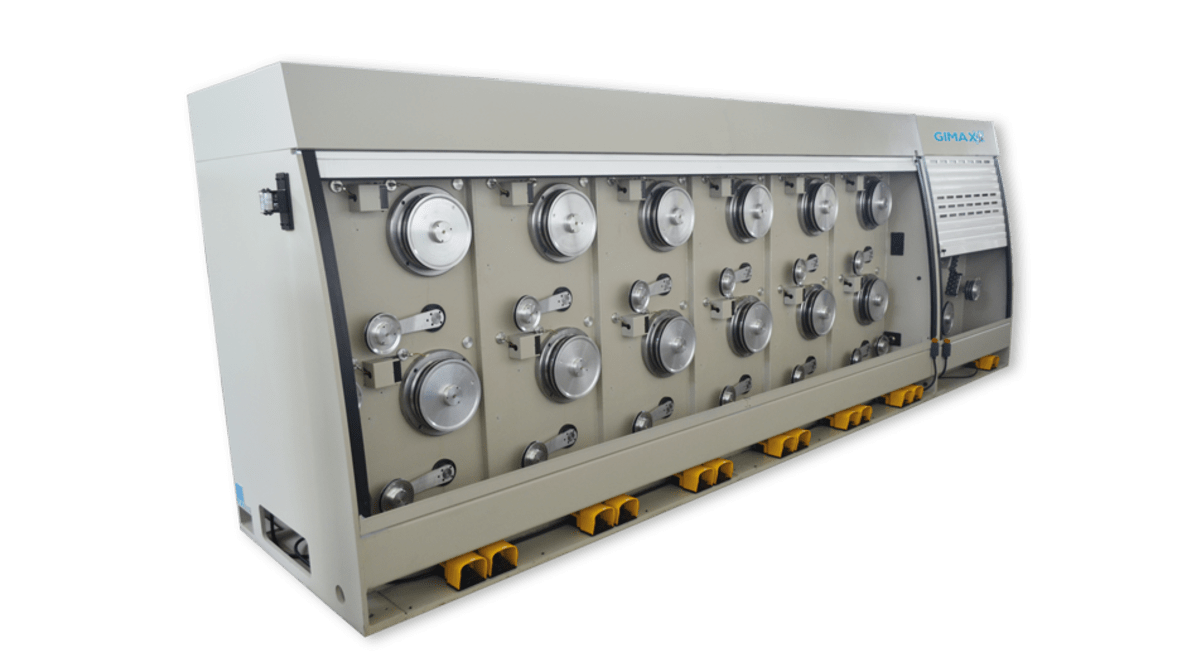

Gimax launched a new TRS range of non-slip wet drawing units with independently driven vertical capstans, thus combining most of the benefits of both dry and wet drawing lines.

The TRS is a “spray” type wet drawbench: the lubricant is “sprayed” onto the die, onto the die box and onto the capstan. This range is ideal for both ferrous and non-ferrous wires. Its reduced footprint, easily accessible parts and components not only offer cost savings in terms of floorspace and labor (operation and maintenance), but are also an important aid in decreasing downtime. The result is a cutting-edge piece of technology that features high productivity, perfect alignment of wire between die and capstan, and low energy consumption.

Technical characteristics:
- Reduced die and capstan wear
- Mechanical line speed reaches 33 meters/second.
- Fixed or rotating dies.
- Rotating die speed varies in proportion to line speed.
- Each block can be bypassed.
- Synchronization by means of dancer arm.
- Input wire diameter starts at 2,00mm (steel wire) or 3,00mm with wire aluminum wire.

Parallel to the TRS range of non-slip wet drawing units, are the TRD dry drawing machines, available with vertically or horizontally mounted capstans – non-slip (with independently driven capstans), tilted horizontal capstans, rotating dies, water-cooled capstans, etc. The capstan diameter can vary from 300mm up to 1200mm depending on the application and diameter of wire, and can reach a line speed of 35 meters/second.

In non-ferrous applications (aluminum), the draw benches are often used in combination with shaving or other equipment. Gimax also manufactures fully automatic and semi-automatic respooling machines and a full range of no-twist after packing units.

With 41 years of experience and an excellent knowledge of the entire wire manufacturing process, Gimax has always played a leading role in the development of innovative equipment for ferrous and non-ferrous wire.
