In-line Profile & Shape Measurement and Monitoring with High-Tech ZUMBACH Systems

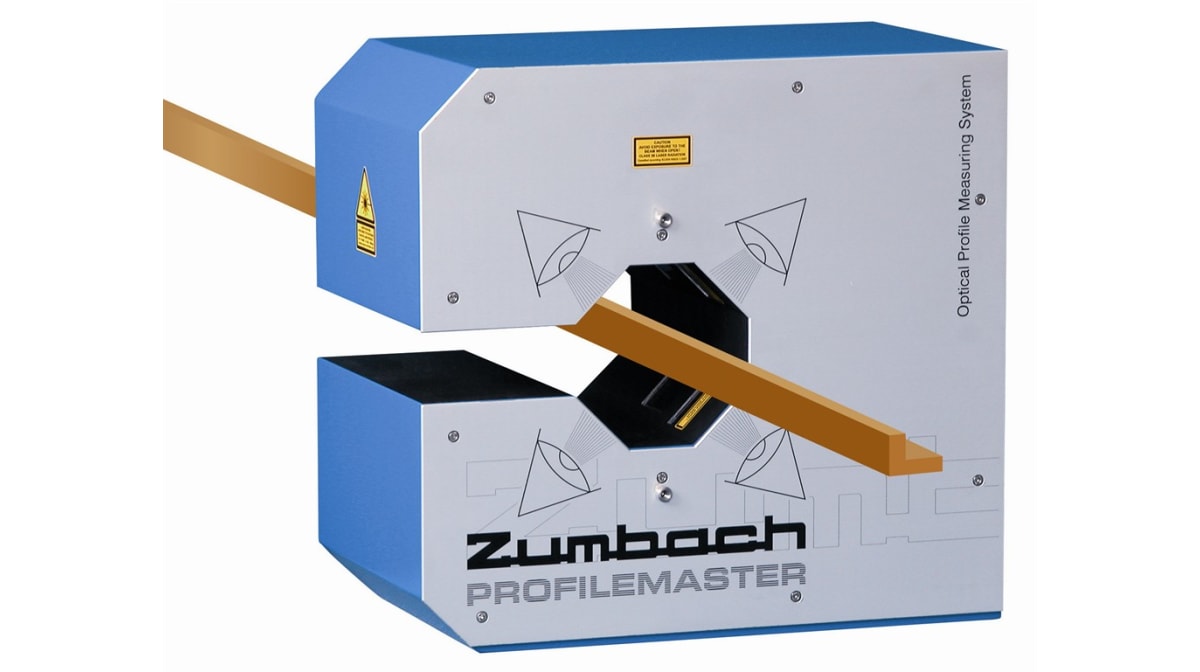

PROFILEMASTER®PMM 30, PMM 50 & PMM 80

The new PROFILEMASTER®PMM 30, 50 and 80 profile and shape measurement systems are the latest models available in the Zumbach's PROFILEMASTER® family, enabling measurement systems using Light Section principle and MachineVision.

The design was focused to achieve the best price / performance ratio for all profiles, tubes, cables made of plastic, rubber, metal, steel and other materials. Additionally, the PROFILEMASTER®PMM 30/50/80, fulfil the demands of themarket for a compact, industrial-proof and cost-effective systems.

As a pioneer of on-line measurement committed to extensive research and development activities, Zumbach Electronics has continuously grown as one of the world-wide leading manufacturers of on-line measuring and control systems.
Top priority at Zumbach Electronics remains to be customer relationships through local presence combined with proven high quality products, services, personal consultations and support.

Customer Benefits
• Increases the accuracy of your end product • Improved process control
• Scrap reduction • Savings on raw material and post processing costs
• Increased product quality = Higher customer satisfaction • Quick and easy installation on existing production lines • Seamless integration of the PC-based system with your network   Main Data Measuring field: Within ø 30 / 50 / 80 mm (1.18 / 2 / 3.15 in.) Min. product dimension: Up to 2 mm (.08 in.) Repeatability: Up to +/- 0.002 mm (+/- .00008 in.) Light source: VLD (Visible Laser Diode) red, class 3R Cameras: CCD Megapixel Gigabit Ethernet Line speed: Unlimited Operating system: Windows™ XP embedded
