Straightening rolls and groove profiles: small details that make a big difference in wire quality
In wire manufacturing and processing, achieving uniform straightness and surface quality depends on more than the straightening equipment itself. One of the most critical components is also one of the smallest: the grooved straightening roll.
These precision tooling components guide and support the wire as it passes through the straightener, helping control how corrective force is applied. Their geometry, manufacturing accuracy, and condition directly influence straightening performance and the quality of the finished product.
Why groove geometry matters
Not all wire is created equal, and neither are the grooves used to straighten it.
Different wire diameters, material properties, and cross-sectional shapes require different groove profiles to provide effective support and controlled contact.
V-grooves are commonly used for round wire, offering versatility across a range of diameters. U-grooves provide a different contact profile and can be designed for applications requiring more closely matched support. Specialty shapes, including square, rectangular, hexagonal, and other custom profiles, may require grooves manufactured specifically for their geometry.
The objective is to maintain stable contact and positioning without introducing unnecessary pressure, deformation, or surface damage.
An improperly matched groove can contribute to uneven contact, wire marking, inconsistent straightness, and premature tooling wear.
Precision beyond the groove
While groove shape is important, the precision with which the roll is manufactured is equally critical.
Concentricity, groove location, and dimensional consistency all influence how accurately wire travels through a straightening assembly. Even small variations between rolls can affect the wire's centerline and introduce unwanted movement during processing.
Bearing tolerances also matter. Differences in bearing width can change the installed position of a replacement roll, even when its nominal dimensions appear identical.

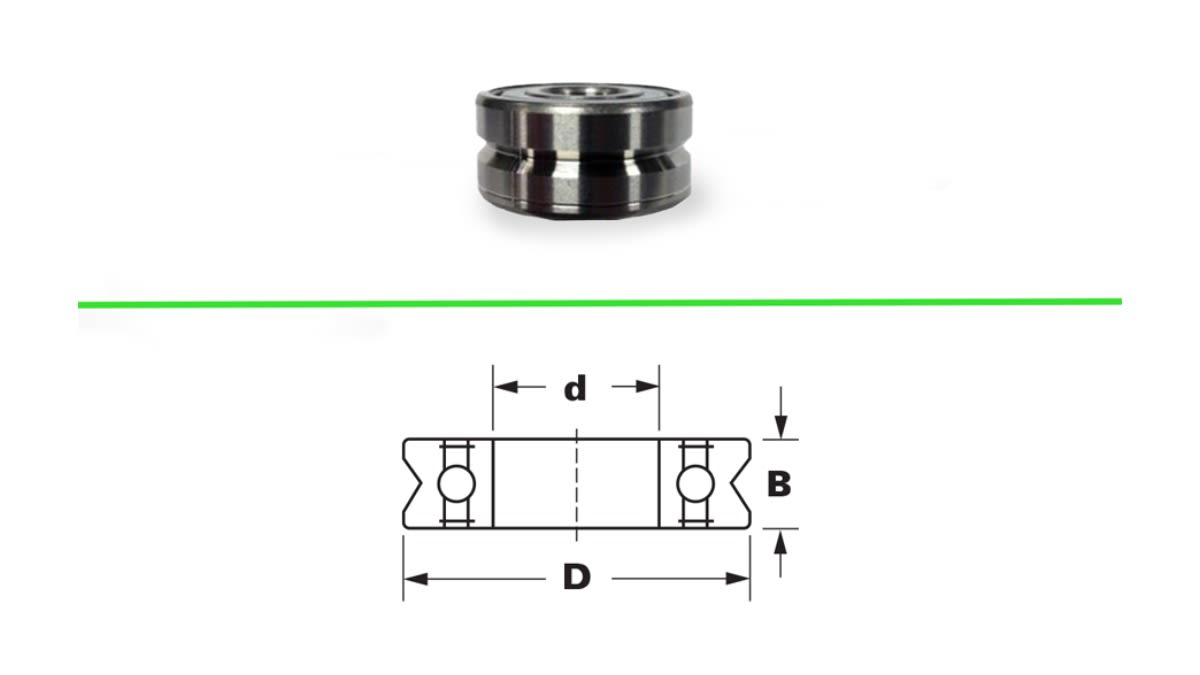

Grooved straightening roll with dimensional drawing. Roll dimensions and manufacturing accuracy play an important role in maintaining correct wire alignment.
Correct installation matters just as much. Sjogren Industries developed a specialized roll orientation marker that helps operators install replacement rolls in the proper orientation, maintaining the intended wire centerline and improving setup repeatability.
These details become particularly important in high-speed operations and applications involving tight dimensional tolerances.
Protecting surface quality
Straightening rolls must do more than remove curvature. They must accomplish this while protecting the material being processed.
Surface finish, groove condition, and roll material should be considered when selecting tooling, particularly for coated wire, precious metals, specialty alloys, and shaped products.
Excessive contact pressure or worn grooves can introduce scratches, marking, or dimensional distortion. Properly manufactured and maintained rolls help minimize these risks while supporting reliable operation.
Routine inspection for groove wear, surface damage, and bearing condition is therefore an important part of maintaining wire quality.
Selecting the right roll for the application
Effective roll selection begins with understanding the material and process requirements.
Wire diameter, cross-sectional geometry, tensile properties, surface finish requirements, line speed, and straightener configuration should all be evaluated.
In some applications, a standard groove profile may be sufficient. Others benefit from customized geometry, specialized materials, or high-speed bearing configurations.
The right choice can improve straightening consistency, extend tooling life, reduce setup adjustments, and help minimize production interruptions.

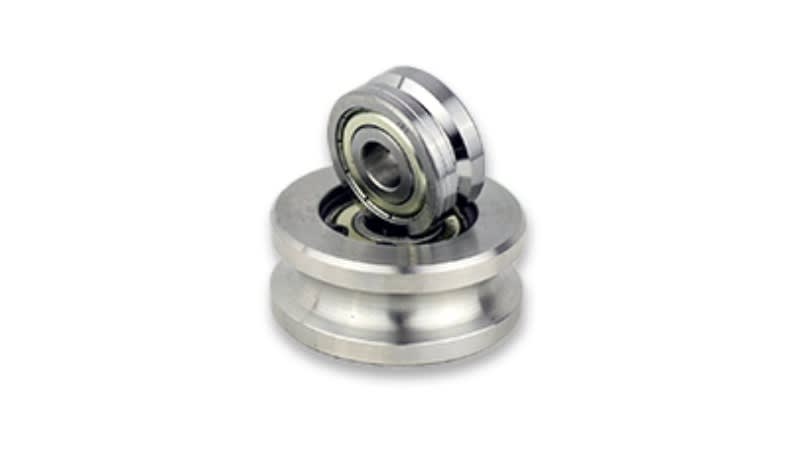

Grooved straightening rolls with bearings. Selecting the appropriate groove profile and tooling configuration helps ensure reliable wire straightening performance.
The value of precision tooling
With nearly a century of experience in wire straightening technology, Sjogren Industries manufactures precision grooved rolls for a broad range of wire and cable applications, including replacement rolls for equipment from other manufacturers.
Ultimately, successful wire straightening depends on getting the small details right. Proper groove selection, accurate manufacturing, and routine maintenance help manufacturers achieve reliable performance while protecting the quality of their finished products.
