OLC-K immersion oiling machine: the effective solution for oiling small metal parts

Agibi Progetti is well known in the industry for producing high-quality heat treatment furnaces, but the company also offers advanced solutions for metal surface treatment. Among these, the OLC-K immersion oiling machine stands out for its design, which ensures light and uniform oiling of springs and small metal parts, even in hard-to-reach cavities.

Operational benefits: safety, precision, and quality

Using the OLC-K immersion oiling machine offers significant advantages over traditional manual oiling techniques:

• increased operator safety: eliminating manual spray misting reduces the risk of oil aerosols and environmental dispersion, improving working conditions and the healthiness of the production area;
 • uniform oiling: the automatic immersion and centrifuge system ensures consistent coverage of the treated part surfaces;
 • cavity protection: the process allows oil to reach even the most difficult areas, ensuring complete protection against oxidation.

Controlled oiling with no waste

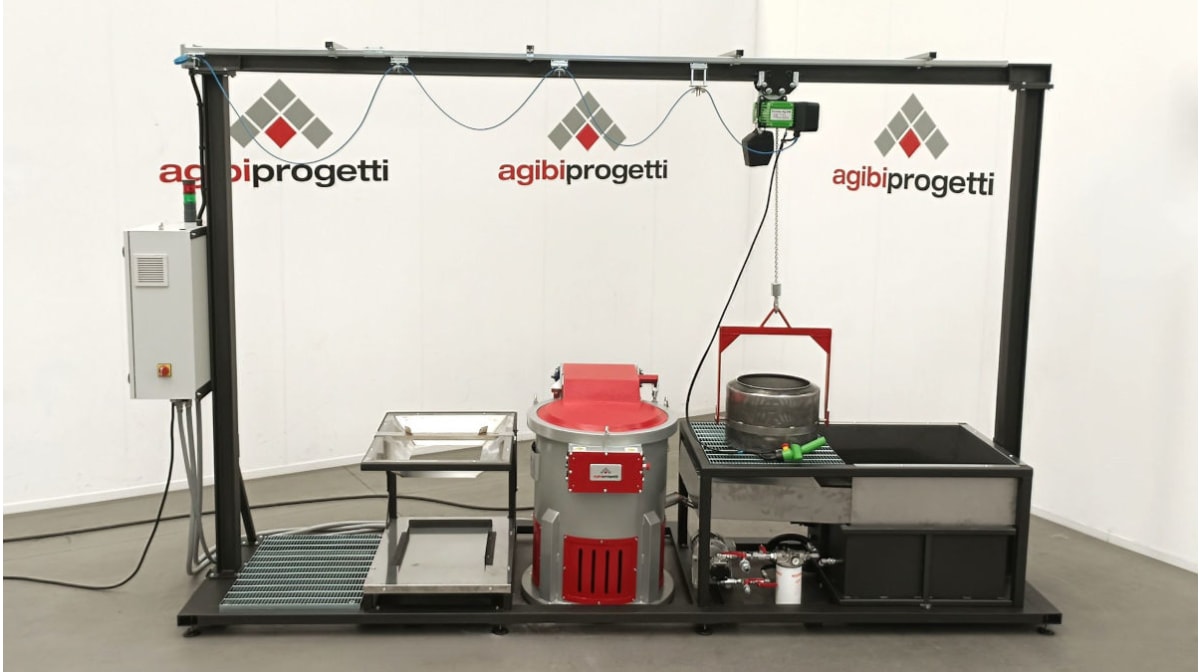

The process is as simple as it is effective: components are loaded into perforated baskets and immersed in an oil tank using a hoist. After immersion, the parts move to a dripping station and finally to the centrifugal extractor, which is the core of the system. This automatic cycle ensures even oil distribution and removes excess oil, reducing waste and processing time.

The OLC-K unit is equipped with a circulation pump and a replaceable filter, essential for keeping the oil free of impurities. Additionally, its careful design ensures effective protection even inside component cavities, preventing post-treatment oxidation.

Technical specifications and available configurations

The OLC-K model is available in two versions: with a maximum basket capacity of 50 kg and 100 kg, and useful volumes of 38 and 70 dm³ respectively. Its compact size (from 3300 to 3900 mm in length) makes it suitable even for limited production spaces.

Optional features include an electric hoist or a gantry robot for automated basket handling. Replacement galvanized baskets, balanced and with centrifuge fittings, are also available.

Safety and usage recommendations

The OLC-K oiling machine is not suitable for use with oils diluted in flammable solvents, as it is not explosion-proof. It is therefore ideal for manufacturers using non-hazardous light oils and looking for an effective solution for protective oiling of complex parts.

For more technical information or personalized advice, please contact Agibi Progetti directly using the details provided on this page.
