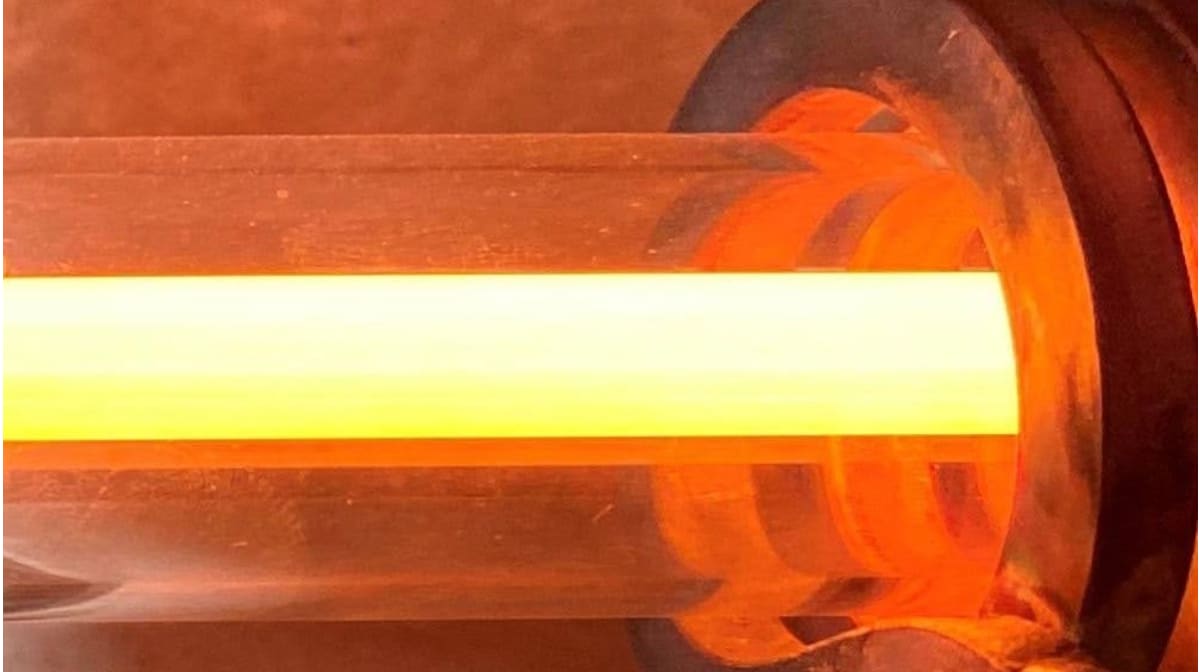

“Why induction annealing has become the industry standard in stainless steel tube production”
The production of stainless steel tubes requires a heat treatment capable of ensuring controlled softening, restoration of ductility, and elimination of residual stresses generated by plastic deformation and welding. Induction annealing has established itself as the benchmark technology thanks to its high energy efficiency, rapid response, precise control of the thermal profile, the possibility of inline integration, and the drastic reduction of oxidation in a protective atmosphere.
The latest-generation Elestar systems represent the most advanced solution for this technology, designed for high-productivity lines and for applications requiring bright annealing.
System architecture
The Elestar induction annealing system consists of three main components, each designed to contribute to the efficiency and precision of the entire process: the power generator, the inductors, and the sealing chambers with protective atmosphere.
Induction power generator
The core of the system is a high-efficiency generator equipped with continuous power modulation, fast-response power control, and integrated predictive diagnostics. Dynamic regulation allows the target temperature to be maintained even in the presence of speed variations or dimensional tolerances in the tube.
Inductors: design and electromagnetic optimization
Elestar inductors are designed to ensure a uniform magnetic field along the circumference, optimized penetration depth based on diameter and alloy, reduction of hot spots through variable-profile geometries, and high-efficiency cooling for thermal stability. The design is based on FEM models that simulate the distribution of induced currents, thermal gradients, electromagnetic coupling, and the interaction between inductors in multiple configurations.
Sealing chambers and protective atmosphere
To achieve bright annealing, the tube passes through sealing chambers designed to prevent oxygen ingress (maintaining a stable internal pressure above atmospheric pressure), optimize hydrogen flushing, as well as avoid any turbulence that could cause unwanted tube discoloration.
Metallurgical transformations during annealing
The annealing of stainless steel tubes involves three fundamental stages. During the treatment, the microstructure of the material undergoes a progressive and controlled transformation: from the reduction of residual stresses to the complete reorganization of the crystal lattice.
Recovery: in the first stage, internal stresses are reduced without significant changes to the microstructure.
Recrystallization: the second stage involves the formation of new deformation-free grains, resulting in increased ductility, reduced hardness, and improved machinability.
Grain growth: the third stage is controlled through dwell time, temperature, and line speed. Elestar systems keep the tube within the optimal thermal window to prevent excessive grain growth, thereby ensuring repeatable mechanical properties.
Temperature control, pyrometry, and thermal models
Thermal control is one of the most critical elements of the process. Elestar systems use dual-wavelength pyrometers with automatic emissivity compensation and anti-reflection filters for bright surfaces, ensuring accurate measurements under all operating conditions.
Measured performance in recent installations
Recent Elestar installations have documented the following results:
- Line speeds up to 10–15 m/min
- Improved thermal uniformity
- Reduced hydrogen consumption
- Elimination of yellowish discoloration
- Excellent metallurgical repeatability
Why choose Elestar induction annealing systems
Elestar induction annealing systems represent a cutting-edge solution for the production of high-performance stainless steel tubes. Thanks to optimized electromagnetic design, intelligent thermal control, stable protective atmosphere, and full integration with the production line, it is possible to achieve high metallurgical quality, energy efficiency, and repeatable processes.
For more information on Elestar induction annealing systems, visit the online stand on Expometals.net or contact the sales team directly.
