Niehoff at wire Russia 2015 - Show preview

At this year's wire Russia 2015, Maschinenfabrik Niehoff and Niehoff of Russia are showing the following exhibits:

an MSM 224 type wire drawing machine for intermediate wire range with RI 250 type continuous inductive inline annealer; a D 632 double-twist bunching machine with ARP 630.1 pay-off.

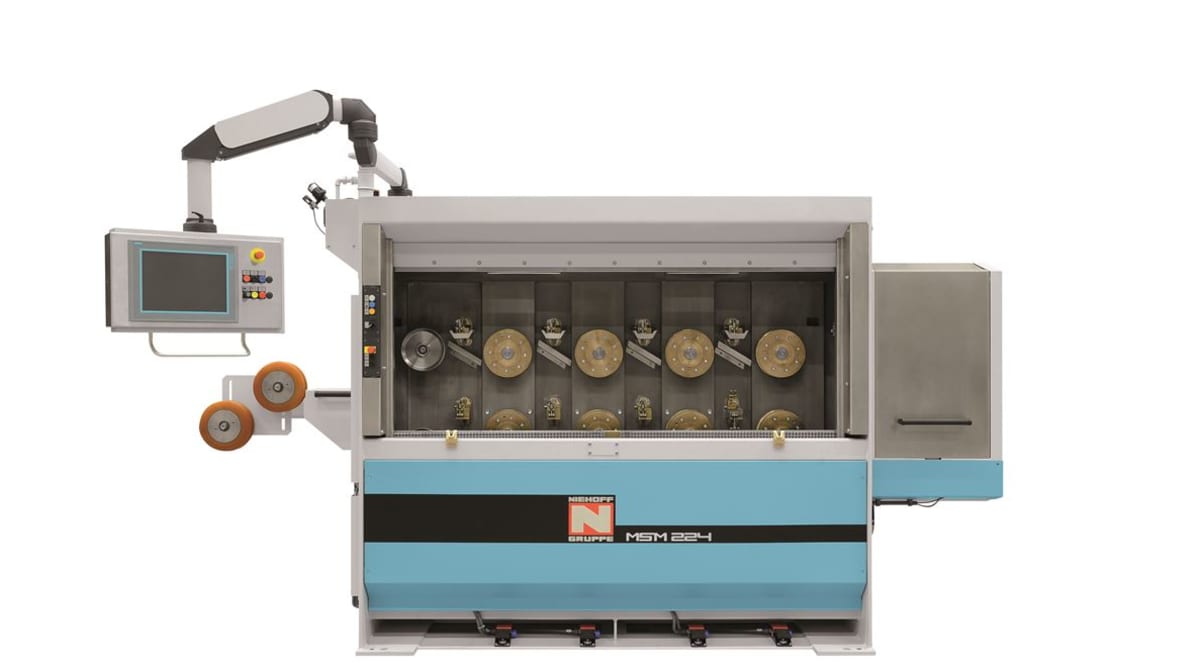

The electronically driven MSM 224 wire drawing machine (see first picture on top left) for the intermediate wire range with continuous inductive inline annealer type RI 250 is preferably used for wires made of copper alloys such as brass, bronze and German silver. Nickel and nickel alloys wires as well as other non-ferrous metals like platinum, rhodium and special materials can also be produced. The machine is capable of drawing wires with a maximum inlet diameter of 3.7 mm to a final diameter range of 0.20 ... 1.80 mm (depending on the material). Other features include a completely submerged drawing process and die holders with high pressure lubrication. The drawing capstans are made from a ceramic composite material and individually driven by water cooled AC motors. This drive principle enables a minimized slip operation resulting in wire with a very high surface quality and minimzed energy consumption. With help of the single drives the wire elongation between the different drawing capstans can be varied over a wide range. In this way for different alloys in each case the optimum wire elongation can be adjusted.

The continuous inductive inline annealer type RI 250 (second picture on the left) is like the other models of the RI series built in several sizes designed for wires with low electric and thermal conductivity. RI type annealers work on the principle of an excitation voltage transformer. This principle and the fast cooling of the wire enable a fine-grained structure, giving the wire excellent processing and forming properties while ensuring a high wire surface quality.

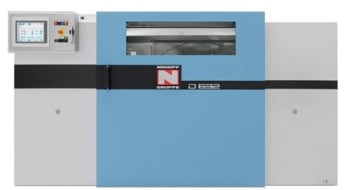

The D 632 type double-twist bunching machine (third picture on the right) is designed for strands with 0.09 to 6.00 mm² cross section and a steplessly variable lay length of 6 to 100 mm. The maximum number of twists is 6,500 twists/min, the maximum speed 300 m/min. Other features of the machine include the service proven energy-saving single bow (ECO-Bow) design, the contactless transmission of machine data within the machine and a sophisticated drive concept: Compared to conventional bunching machines, energy consumption and noise emission are significantly reduced due to the one-bow design. The relatively small rotor driving motor of energy efficiency class IE3 is characterized by a high degree of efficiency, and reduces power consumption additionally. The 230 V voltage supply in the spool carrier leads to an increased transmission security at the slip rings, a threechannel telemetry enables an absolutely secure signal feedback and a greater control accuracy of the lay length. The drive concept expresses itself in a robust operation, free of dancer or spooler vibrations. Operation is carried out via a panel with a 10“ touch-screen display with with a new color user interface: the NMI (Niehoff Machine Interface) with a clear navigation structure according to a unified concept. A further special feature is the patented opto-electronic NBAT system (NIEHOFF Bunching Automatic Traverse), which allows spools to be perfectly spooled. Spooled wire can then be payed-off tangle-free at extremely high speeds with no damage. Users of the machine benefit from a mature technology and future security concerning the supply of spare parts and service.
The D632 is part of a series of seven differently sized models which cover the cross sections from 0.013 mm² to 95 mm² (copper wire strands) or 120 mm² (aluminum wire strands).
The ARP 630 type pay-off completes the portfolio for the production of strands. By clamping the spool with the help of pintles spool loading becomes fast and easy. Spools with various bore diameters can be used, and as an option particular spool lifting tables are available too.

Complete Solutions from a Single Source
Maschinenfabrik Niehoff develops and builds with an experience of more than 60 years all machinery needed for the production of non-ferrous metals wires and the further processing into automotive, data and special cables, with the exception of extruders. In addition, the portfolio contains technical assistance by professional specialists who speak the customers´ languages. The reliable supply with original Niehoff wear parts and spare parts, machinery inspection, refurbishment and maintenance measures as well as machine operator and maintenance training courses complete the range of services. Niehoff Group offers custom-tailored solutions from development and planning to turnkey projects of complete cable factories.
Niehoff of Russia (NoR) is Niehoff's marketing and service branch based in Moscow and responsible for Niehoff activities in the Russian Federation and former CIS countries. NoR's four service engineers, all Russian native speakers, install Niehoff machines at customer sites, put the machinery into operation and provide after sales service. The Group with nearly 750 employees worldwide is comprised of the headquarters, five manufacturing subsidiaries (in Brazil, the US, the Czech Republic, India, and China) as well as sales and service centers in Japan, Singapore and Russia.
