Coseco: cutting-edge copper-plating lines for steel wire

Chemical copper-plating is a very common process in the steel wire industry, especially when it comes to the production of welding wire and semi-finished industrial products.

On the market since 1975, Coseco offers a wide range of copper-plating solutions, from standard machines to customized plants. In particular, the standard lines can be divided into three groups:

- high-speed lines with multi-groove capstans copper-plating tank with horizontal axis (specific for small diameters, such as MIG welding wire);

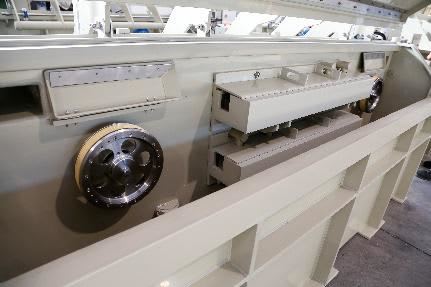

Industrial machine detail showing a large metal gear and light-colored modular processing components.

- high-speed lines with multi-groove capstans copper-plating tank with vertical axis (ideal for medium-diameter wires);

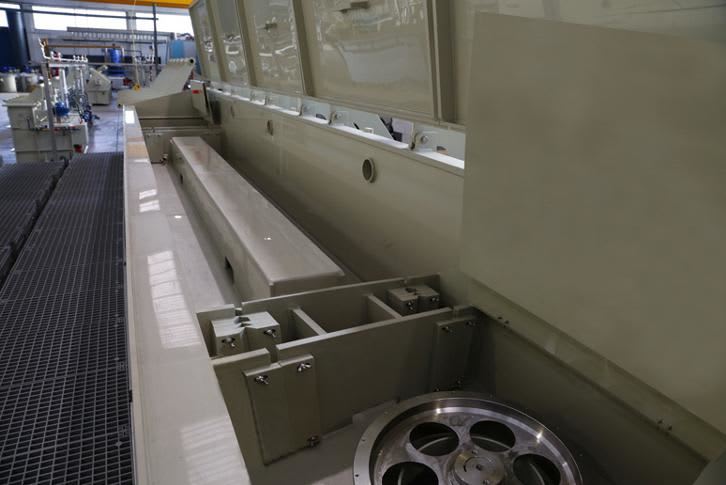

Interior view of a large light-colored industrial processing machine with an open section, revealing its internal support structures, a long central component, and a prominent metal spoked wheel, set in a factory environment with metal grated flooring.

- straight copper-plating lines (designed for larger diameters, such as submerged arc welding wire).

Long industrial processing line featuring multiple beige tanks, an overhead exhaust ventilation system with conical hoods, and extensive white piping with red valves, all set within a brightly lit factory.

Copper-plating tanks can be designed for baths with or without inhibitors.
The composition of the initial cleaning section, on the other hand, is chosen according to the surface condition of the starting filter; Coseco offers specific solutions for hot water cleaning, diluted acid cleaning, or electrolytic pickling. Last but not least, all standard lines are equipped with a fume collector system and, on request, with a fume washing tower.

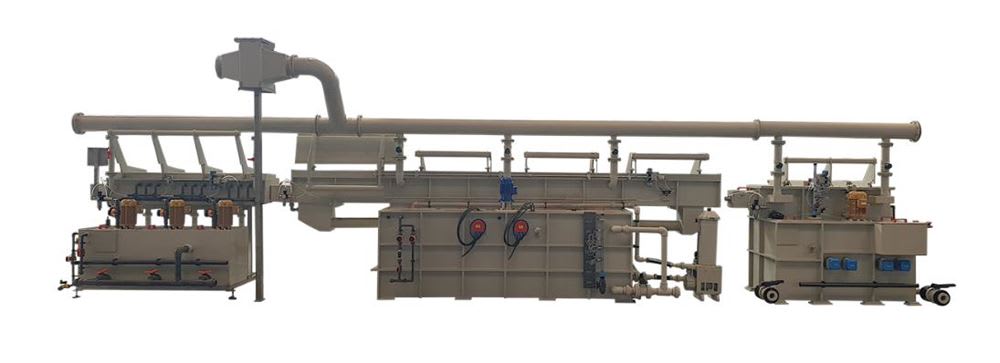

Industrial multi-stage chemical processing line featuring interconnected tanks, pumps, and extensive piping. Industrial gas scrubber system with a tall cylindrical column, extensive piping, and a separate electronic control panel on a base.
In addition to the standard chemical copper-plating lines, Coseco supplies the market with custom lines to meet specific production needs.
For further information, please contact the company using the references on the side.

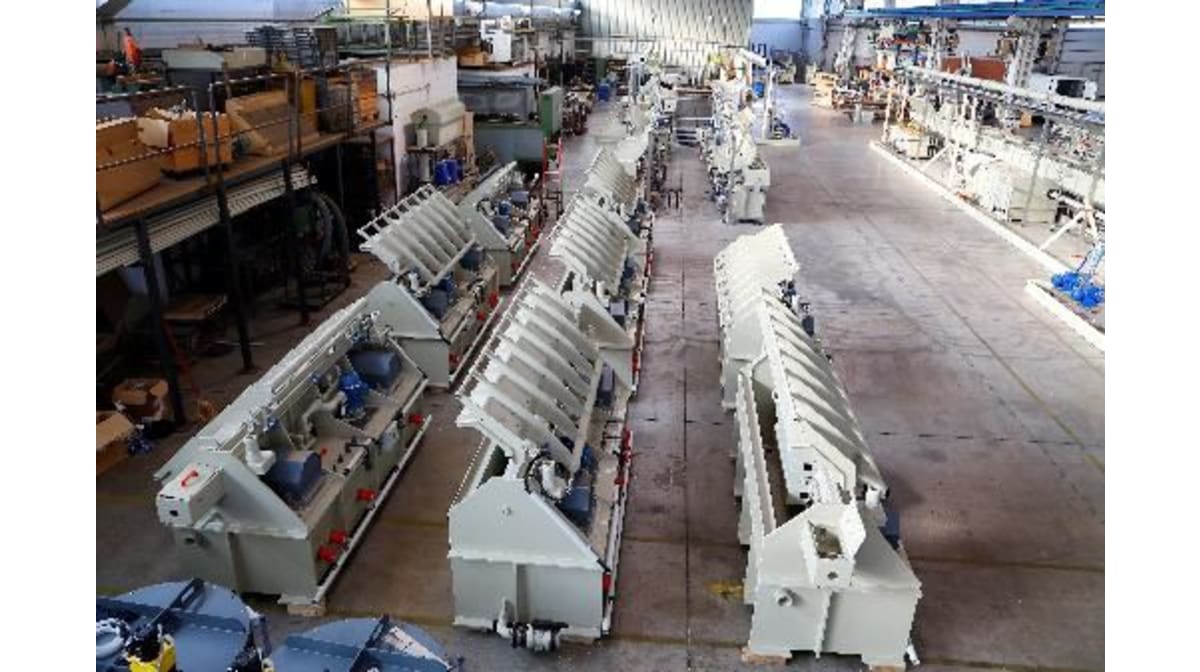

*In the top right picture, the assembly of a copper-plating line for CO2 wire in the COSECO facility.
