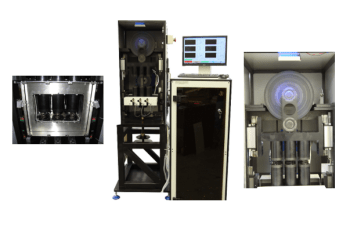

Spring fatigue testing system LST Series

LST Series, manufactured by SAS Inc. (Spring Analysis Systems) and distributed in the UK, Ireland and Scandinavia by Transworld Engineering, is a fatigue / life cycle tester that can be configured as follows:

PC version:
- Monitoring, storing and reporting of forces at each test station for each cycle.
- Height gauges to allow for easy setup.
- Programmable for failure definition and for pre-designed speed curves.

Mechanical Version:
- Includes a cycle counter and a speed control knob.
- No data is monitored or stored in this version.
- They exhibit the following characteristics.

Technical features:
- Up to 20000N force capacity. (10000N on each test head).
- 2 test heads available.
- Each test head contains up to 6 independent test stations.
- 25 Hz maximum cycle speed.
- Optional temperature controlled heating unit available.
