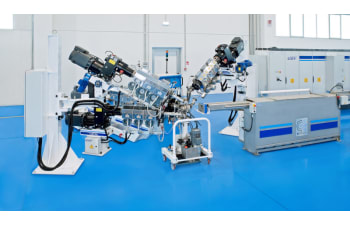

Complete extrusion lines for cable production

Elav designs and manufactures complete extrusion lines for cable production, serving various sectors: energy, telecommunications, automotive, building wire, coaxial, LAN, and control cables.

Elav solutions stand out for their modularity, flexibility, and high performance, with each line configurable according to the cable type, required output, and processing materials. Every system is designed to ensure process continuity, energy savings, and scrap optimization.

Modular and configurable structure

Elav can supply all needed components to build a complete extrusion line, designing and configuring them based on the customer’s specific production requirements. Elav offers:

• LCE series extruders (Low Consumption Extruder): designed for insulation, sheathing, filling, and skin layers, available in diameters from 35 to 160 mm. They ensure reduced energy consumption thanks to optimized screw profiles and the option of gravimetric multi-component dosing management system.

• Pay-offs and take-ups: cantilever, sliding arms or portal versions, they are equipped with AC Vector or Brushless motors to guarantee stability even with large reels — also available in automatic versions for higher performance and increased operator safety.

• Capstans and caterpillars: a wide range to meet any pulling requirement, up to 1500 m/min.

• Accumulators: horizontal or vertical, with motorized or pneumatic actuators, to ensure continuous operation during reel changes.

• Dancers: vertical or horizontal, for smooth line tension management.

• Dosing systems: volumetric, gravimetric, and batch systems for various compound mixtures. High-precision liquid injection systems for liquid silane (featuring the patented Si-Jet system) are also available, integrable into the line for optimal material dosing control.

Processable materials and available configurations

Elav lines can process a wide range of thermoplastic materials: PE, XLPE, XLPE Monosil, PP, PVC, HFFR, PU, TPE, FEP, and Coex configurations (2, 3, or 4 layers) or Tandem. The company also specializes in insulation and sheathing lines for rubber cables (Steam CV lines) and XLPE cables (Nitrogen CV Lines).

Configurations can be adapted for:
• primary insulation;
• outer sheath application;
• skin/foam/skin co-extrusion;
• tandem operations with drawing or S-Z stranding.

Application fields

Elav lines are used in the production of:
• automotive cables;
• building wire;
• power cables;
• LAN and telecommunication cables;
• coaxial and micro-coaxial cables.

Each solution is designed to ensure top performance in terms of speed, dimensional accuracy, final product quality, and enhanced safety.

Elav is your ideal partner for designing tailor-made extrusion lines that evolve with your production and adapt to any industrial requirement. Contact the team for dedicated consulting.
