Machines for sheet metal

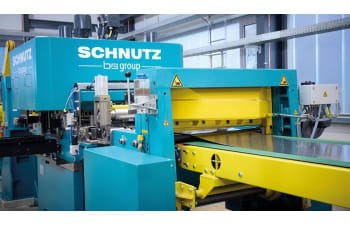

Cut-to-length lines for efficient metal strip production
Burghardt + Schmidt and SCHNUTZ combine their expertise to deliver cut-to-length solutions for high-quality sheet production from metal coils. Within the group, b+s develops complete cut-to-length lines, while SCHNUTZ contributes its high-performance leveling technology for demanding flatness requirements.
Complete cut-to-length lines by b+s
Burghardt + Schmidt designs complete cut-to-length lines that integrate decoiling, leveling, feeding, cutting and stacking into a single production process. The systems can be equipped with stop-and-go or flying shears, as well as optional features such as trimming shears, foiling units, scrap handling systems and automated stacking.
Designed for a wide range of ferrous and non-ferrous materials, the lines ensure precise cut lengths, excellent sheet flatness and reliable handling of surface-sensitive products.
b+s line specifications
- Coil weight: up to 30,000 kg / 66,139 lbs
- Strip width: up to 2,600 mm / 102 in
- Material thickness: 0.10–6.0 mm / 0.004–0.24 in
- Line speed: over 120 m/min / 394 fpm
High-performance levelers by SCHNUTZ
SCHNUTZ specializes in high-performance leveling machines engineered to achieve outstanding strip flatness and consistent material quality. The levelers can be integrated into cut-to-length lines or supplied as standalone solutions for demanding strip processing applications.
