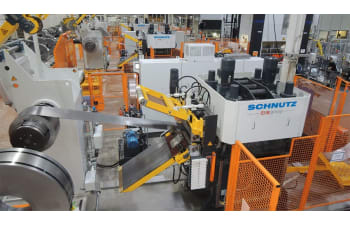

Strip feeding lines for precision coil line integration
SCHNUTZ Strip Feeding Lines are tailor-made coil processing lines designed to handle the complete process from coil handling to roll feed. The systems are used as strip feeding lines upstream of presses or can be equipped with their own blanking shears and stacking systems, depending on the production requirements.
Each line is developed according to the customer's specific needs and is supplied as a complete solution, including the required automation and safety technology. SCHNUTZ also provides installation, commissioning and production support as part of its service offering.
The company specializes in the processing of strip material with sensitive surfaces as well as high- and very high-strength materials. For this reason, SCHNUTZ Strip Feeding Lines are also used for the modernization and upgrading of existing press lines.
Machine specifications
-
Coil weight: 3 to 25 tons
-
Strip width: up to 2,000 mm / 79 in
-
Material thickness: 0.5 to 6.0 mm / 0.02-0.24 in
-
Stretch limit: up to 1,200 MPa
-
Speed: up to 90 m/min / 295 fpm
