Adjustable split drawing dies

Van Steel adjustable split drawing dies expand the range of solutions for metal drawing with modular designs developed for variable production requirements. Engineered to ensure operational continuity and long-term reliability, they represent a strategic technical choice for manufacturers requiring process adaptability and consistent control of in-line performance.

Split drawing dies with die blocks

Split drawing dies with die blocks are fully adjustable to ensure maximum flexibility in metal drawing processes. The structure consists of four sliding die blocks, a configuration that allows achieving any dimensional tolerance with high precision.
This type is particularly suitable for operations that require rapid section adjustments and precise control of final dimensions, reducing machine downtime and optimizing the setup of the drawing line.

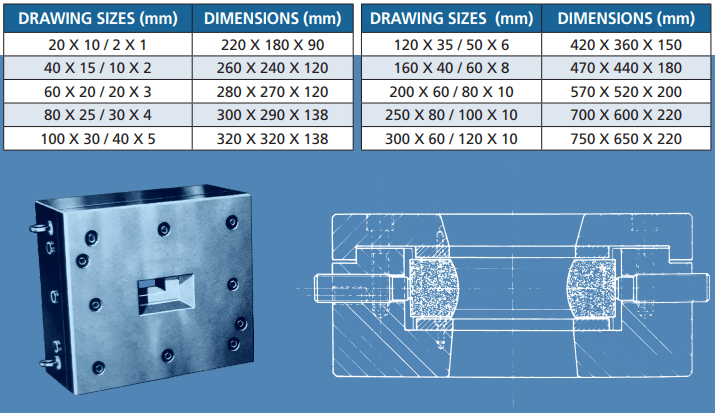

Split drawing dies with die segments

These split drawing dies are designed to further simplify adjustment operations. The length of each die plate is determined simply by positioning the die segments, without the need for complex disassembly procedures.
Adjustments can be easily carried out even while the tool is mounted on the machine, improving operational efficiency and production continuity. As in the block-type version, this configuration also consists of four sliding and adjustable elements, ensuring that any tolerance can be achieved.
Thanks to their versatility, split drawing dies are a strategic solution for drawing lines focused on dimensional precision, production flexibility, and reduced setup times.
